1973 Volkswagen Beetle - Baja Bug on 2040-cars

Year:1973 Mileage:99999
Location:

Henderson, Nevada, United States

Henderson, Nevada, United States
Advertising:

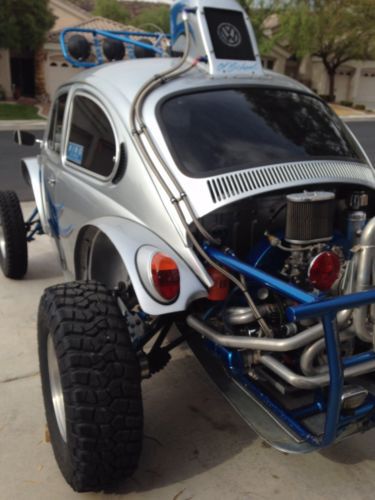

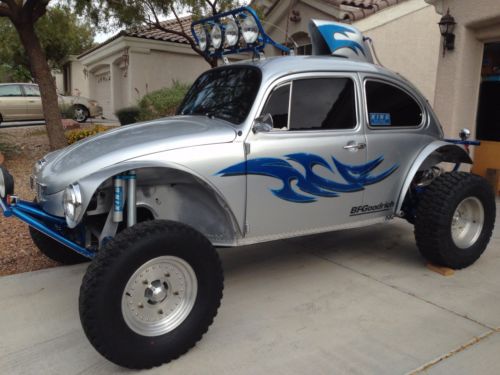

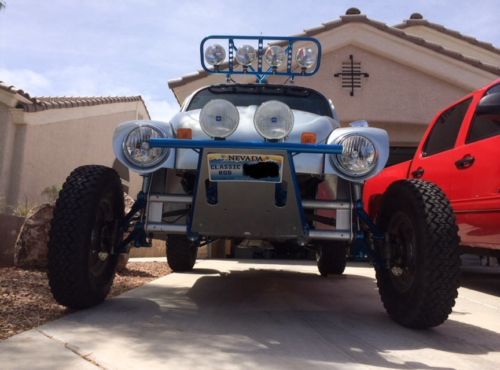

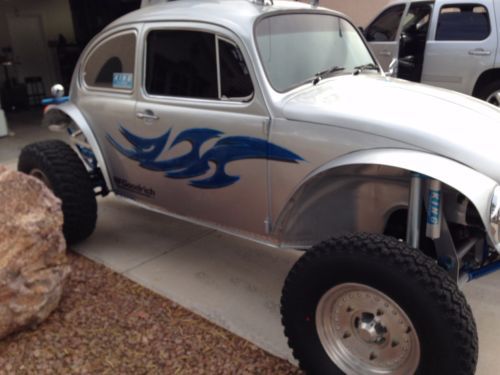

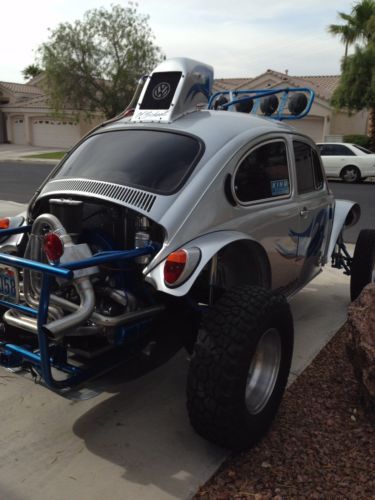

 1973 Volkswagen Beetle - Baja Bug

This car recently went through a "pan off" build and has approx. 3000 miles since completed.  The car and cage is custom painted and hand pinstriped. The engine and transmission were built professionally and have approx. 3000 miles. This is a super clean, well built, Baja bug! All body/window rubber, seals, felts etc are new.  The only thing reused was the rear/side window glass, doors, windshield wiper motor, body & pan. Everything else was replaced! The car is not full of "holes" where the cage and shocks come thru the body.... It was done very clean. Its hard to find one thats had this much love and attention to detail. Cost to build was over $24,000 in parts alone. It is street legal and I have a clear Nevada title. It was previously titled in CA. Body and pan have matching numbers. Almost all driving was done on the street and the vehicle runs & drives great!



Details:

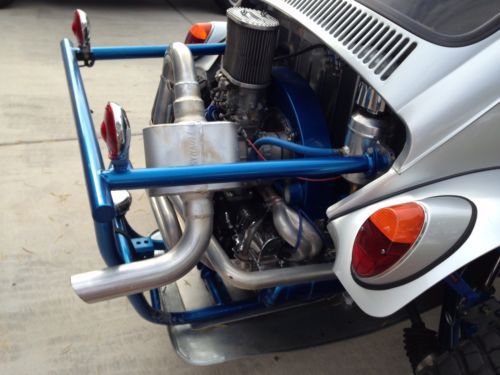

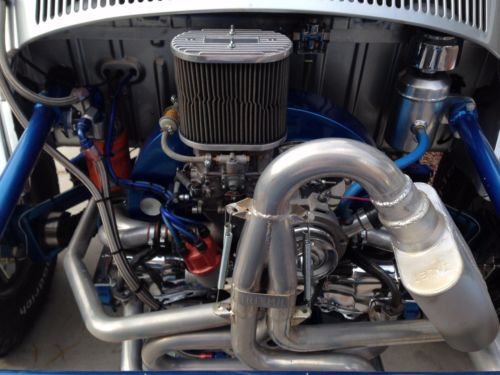

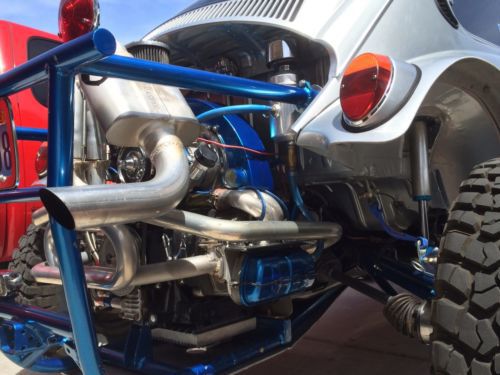

Motor:

Type 1
2027 Stroker (78.8mm x 90.5mm)
chromoly forged billet crankshaft
Forged Pistons
H-Beam rods
chromoly Glad nut
200mm flywheel
Kennedy clutch & pressure plate
AS41 stroker Case
Dual port, Big valve, ported heads
Single Weber 44 w/ heated intake (a must for cold weather)
Tri-mil ceramic coated header
Flowmaster Delta force, single chamber race muffler
Full flowed case
3.5 qt. extra oil sump
External oil cooler w/ 185 degree automatic thermal fan switch
Doghouse oil cooler
External fan
HD oil pump
Stainless oil lines with Earl's fitting
HD 75 amp alternator



Transmission:

002 Bus Transmission
4.86 R&P
Straight cut gears (no clutching required to shift and smoother shifting when clutch is used)
Chromoly drive flanges
930 GKN Loebro CV's



Rear Suspension:

3x3 rear trailing arms
King shocks
Sway-a-way 28mm torsion bars
Sway-a-way axles
Adjustable spring plates
Chromoly stub axles
Adjustable Nylon Limit straps

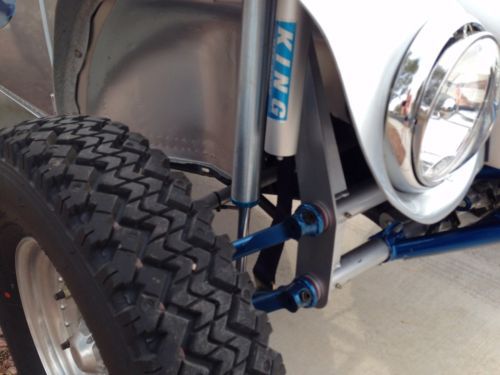

Front Suspension:

2.5" front trailing arms
6" wider beam
H.D. Combo spindles
Chromoly link pins w/ lock nuts
SACO Steering Box, center mounted w/ equal length tie rods
H.D. Ball joints ends
Chromoly tie-rods
King shocks



Brakes:

Gear One disc brakes (rear)
Jamar disk brakes (front)



Wheels & Tires:

5 lug Centerline wheels
New BFG mud terrains - rear
New Yokohama's Y742S tires - front

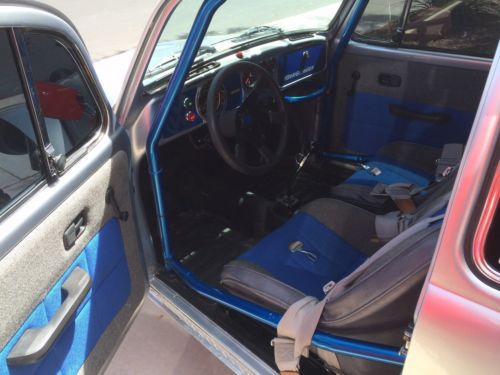

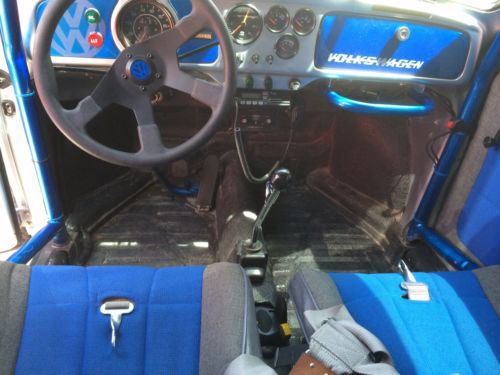

Custom Interior:

Rhino lined floor
Custom headliner
Custom painted dash

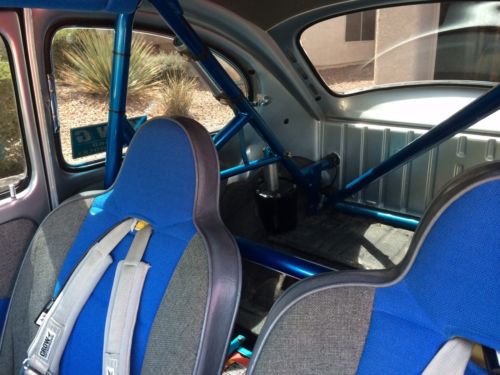

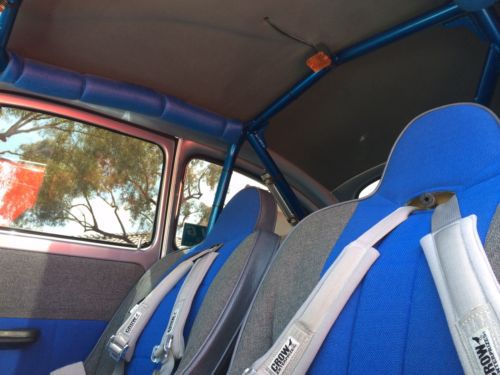

PRP Race seats with matching door/side panels
Adjustable driver & tilting passenger seat mounts
5 point harness
Roll-cage
Skid plate - trans & motor
New speedometer, tach, oil pressure, oil temp gauges
Race Radio with (2) head sets. Car to Car & Driver to Passenger
(6) Hellas offroad lights
Custom light bar
Custom painted Snorkel oil cooler/fan housing
Fire extinguisher
Custom tow hitch painted to match car

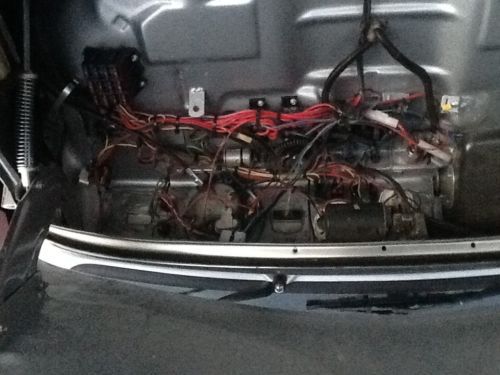

The car was Professionally wired with all new electrical, fuse boxes, relays, switches, idiot lights, High beam/low beams, dimmer lights on dash, turn signals, ignition, (2) very well hidden kill switches, interior mounted coil etc.

Things wrong with the car:
The windshield wiper motor and the reverse/back-up light switch went bad and  will need replaced. $100 in parts.


Contact me if you have any questions.
