Twin Turbo 5.3l Gmc Jimmy 555hp Awd Ls1 Chevy Family Hotrod Race Turbocharged on 2040-cars

Year:1993 Mileage:1
Location:

Wisconsin Rapids, Wisconsin, United States

Wisconsin Rapids, Wisconsin, United States
Advertising:

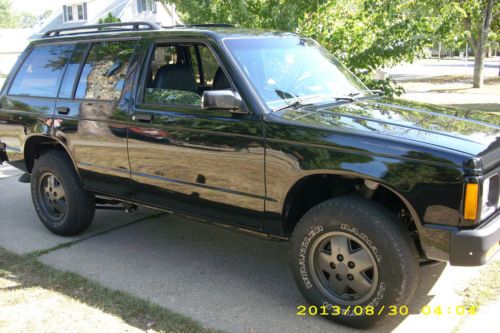

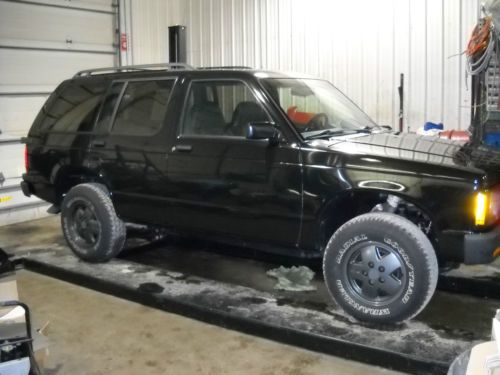

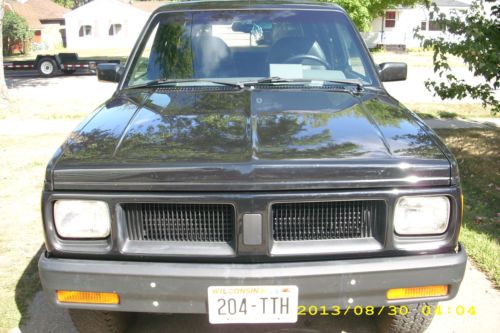

As the title states, 1993 GMC Jimmy with a 2005 5.3L truck motor with twin turbos. Built the truck a couple years ago and had my fun with it, just have some bigger projects going on and need to cash this one out.

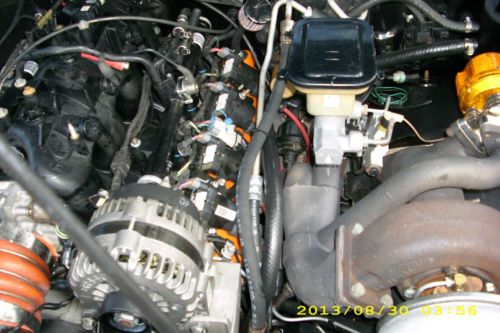

Motor: Mileage unknown, looked fresh when I opened it up. head studs, valve springs, 706 head castings and new ls9 cam. 80 pound seimens injectors and two walbro 255l inline fuel pumps run parallel for the E85 fuel support.

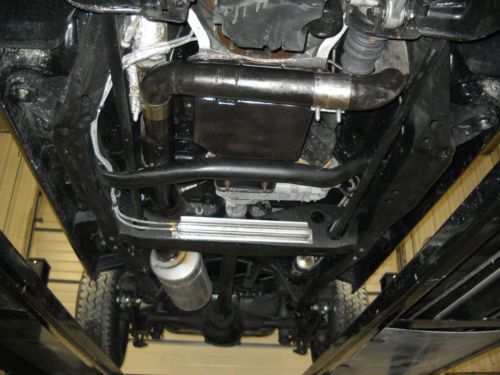

Turbos: rebuilt Holset H1C's, Headers are made from a mild steel header kit and are tig welded, 3" down pipes that merge into 4" exhaust that runs out behind the rear passenger tire, waste gates came off ebay dont really know the brand

Trans: th350, alto red clutches and kolene steels. shift kit, hardened outer intermediate race with new sprag, tsi converter.

Rear end: GM 8.5" with 308 gears gov lock and disk brakes.

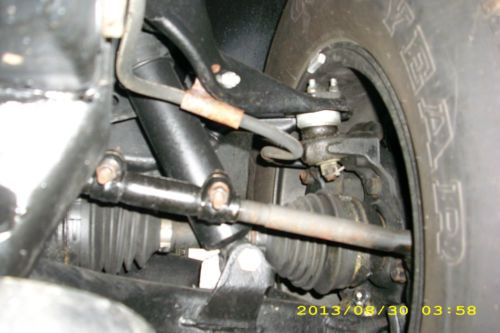

Front diff: GM 308 gear set and axle from a 1993 AWD astro safari

Transfer case: AWD case from olds bravad, I just resently put this in

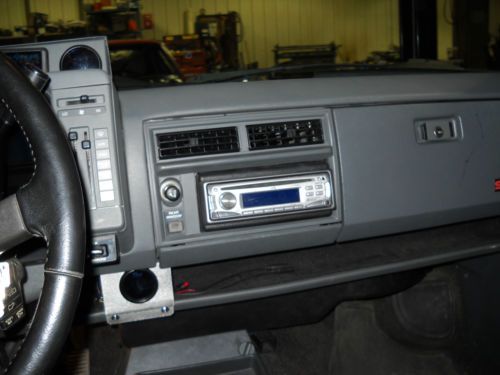

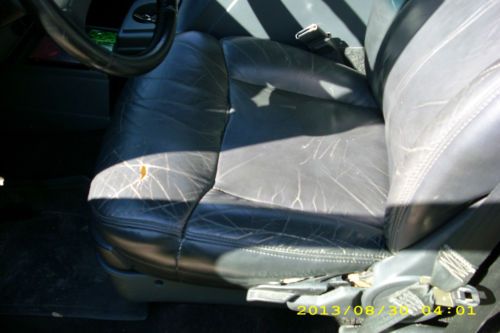

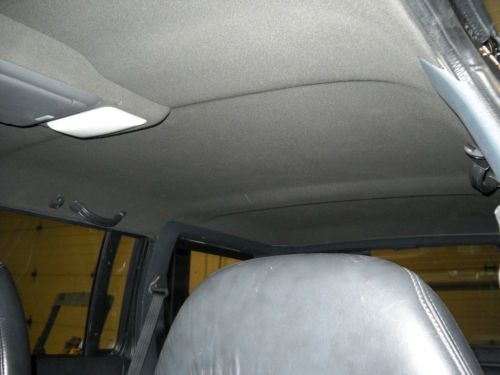

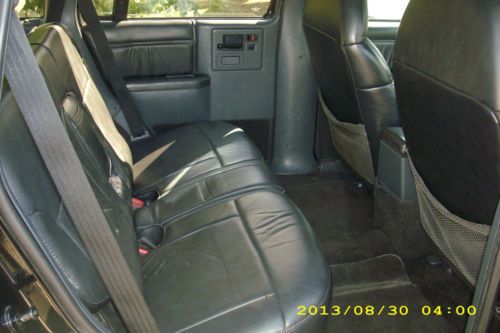

Other: This was pretty much a frame off restoration, the frame was completely disassembled, sand blasted then painted with industrial paint and reassembled with new prothane (urethane) bushings, all ball joints and steering components are new also, I guess I should say new two years ago, I probably have less than 2500 miles on the truck since the rebuild I am not sure of the mileage and ebay wanted a number so I just put 1, the title states that it was 106,646 on it when I bought it in 2000 . The suv also has 4 wheel disk brakes and has a hydro boost braking and power steering system, It works awesome. All the air conditioning components are there, i never charged it to know if it works, it WAS something I was going to work on as I had time. The interior was completely taken out and cleaned there is wear on the drivers seat, I just didnt get around to having it fixed, theres other small cosmetic issues just from its age, but everything is clean. Body itself has fresh paint but its NOT perfect and has some small scratches and chips, but you would have to look for them, there not too obvious. I put this project together with the intention of driving it, its not a show truck but it is a nice truck, had lots of fun with it and makes decent power . The tune was completed on a load bearing dyno by Done Rite Automotive Perfomance and made 555hp and 500lbs of torque on 13psi. I am open for international bidders however shipping is your
 responsibility and the price of shipping is not included, its up to you to do all the phone calls to the transporter, i will be there for the truck to be loaded. Also if you are using paypal to pay the amount of the
 final bid you will pay all fees. for anyone paying with a check the transaction will be final when the check clears. For any addition information  my name and phone number is John 920-427-9352. I usually am not around  the internet during the week for faster information feel free to call me, I'm not a mean person.
