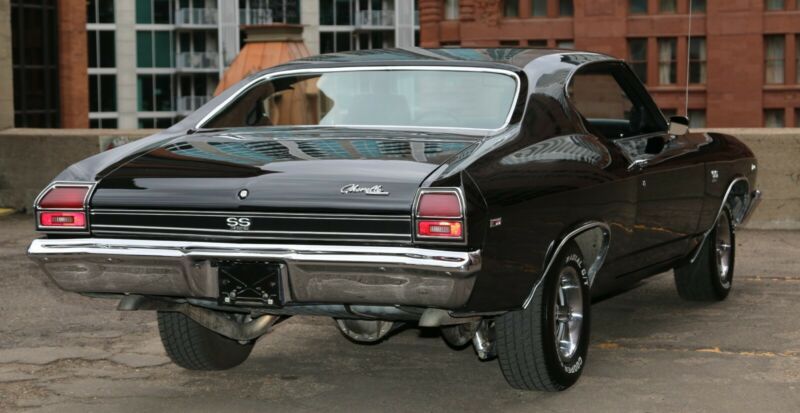

1969 Chevrolet Chevelle Ss on 2040-cars

I acquired this 1969 Chevrolet Chevelle SS 396 in 2018 and proceeded to turn it into a RestoMod
with new performance equipment installed throughout 2018-2020. I fitted it with a BluePrint Engines 509ci V8
equipped with a FiTech Go EFI 4 self-tuning fuel injection system, MSD ignition, Billet Specialties serpentine
conversion pulley kit and Doug Thorley headers with a Pypes stainless steel exhaust system. A TCI Street Fighter
700R4 automatic transmission was also installed along with rebuilding the 12-bolt rear end adding a Detroit
Truetrac limited-slip differential, hydraulically-assisted Wilwood disc brakes, adjustable coilover suspension and
power steering. The car is finished in black over a black interior with power-adjustable Recaro seats, a show car
Hi-Res sound system, alarm system, power locks, back-up camera and LED lighting.

The car came finished in Tuxedo Black (10) from the factory and was repainted during previous ownership. Features
include Dapper Lighting 575 Halo HDR/Switchback LED projector headlamps, chrome bumpers, SS396 badging and a Rydeen
Ulta Low Illumination HD CMOS III back-up camera with parking lines.

14″ Super Sport wheels are mounted with 225/70 Cooper Cobra Radial G/T tires that were installed in 2018. A
Classic Performance Street Beast hydraulic brake assist kit was added along with Wilwood disc brakes with drilled
and slotted rotors at all four corners. A Delphi 14:1 ratio power steering gearbox has also been fitted and the
suspension is the complete Global West Suspension's system that includes coilovers with Viking double-adjustable
shocks, sway bar, control arms with Del-A-Lum bushings, frame supports, anti-bump steer knuckle arms and adjustable
tubular tie rod sleeves.

Originally trimmed in red, the cabin has been reupholstered in black and features new power-adjustable leather
Recaro Orthoped seats bought and installed in 2018 along with custom-fabricated a-pillars, kick-panels, center
console, deck lid blow-through, sub enclosure and finished trunk. Soundskins sound deadening was added to the
entirety of the interior and trunk. Additional amenities include an auto-dimming mirror with a back-up camera
display, Chevelle SS-script floor mats, power door locks, billet switches that operate the high beams, door locks
and speaker illumination... and an iDatalink security system with Shock Sensor, Siren, LED, Hood Pin and Trunk Pin
alarms. The sound system was also installed in 2018 and incorporates the following components:

Sony RSXGS9 Hi-Res digital media receiver
Audison bit One HD Digital Audio Processor w/DRCMP
Five Audison VOCE amplifiers totaling 3,580 watts
AudioQuest parallel RCA and fiber optic wiring for analog and digital connectivity
Eight Morel Elate Titanium speakers
Two JL Audio W6 subwoofers

AutoMeter gauges have been installed in the custom console. The five-digit odometer shows just under 80k miles,
approximately 12k of which I added... with around 9,000 miles driven on the new engine. Total mileage is unknown.
Decoding the body tag reveals the following information:

The engine has a dyno graph from Blueprint Engines showing a maximum output of 658 horsepower and 614 lb-ft of
torque. It was installed in 2019 and is still under the 30 month 50,000 mile transferrable warranty from BluePrint
and is fitted with the following equipment:

FiTech Go EFI 4 self-tuning fuel injection system
Aluminum fabricated air cleaner
Weiand Track Warrior intake manifold
Weiand Team G mechanical water pump
Billet Specialties serpentine conversion kit
Singer 300-amps alternator
Denso starter
PC 1500 Odyssey Battery
MSD ignition system with a Pro-Billet distributor, digital 6AL ignition controller, Blaster 2 ignition coil and
noise capacitor
Tanks Inc. steel fuel tank
Be Cool aluminum radiator with two 12″ Spal electric fans
Doug Thorley headers
PYPES 3" stainless steel exhaust with Black Widow Pro-Series Venom 300 mufflers

The TCI StreetFighter 700R4 three-speed automatic transmission was installed in 2019 and is equipped with a
transmission cooler and a performance flywheel. Power is transferred to the rear wheels through the rebuilt 12-bolt
rear end with a Detroit Truetrac differential, 3.73:1 ring and pinion gearing, a TA Performance aluminum cover and
Moser Engineering 30-spline rear axles.

Engine:
Blueprint PS5091CT 509 C.I.D. 658HP Dyno'd Crate Engine
Fitech 30002 Go EFI 4 600 HP Self Tuning Fuel Injection System
ALL26096 Fabricated Drop Aluminum Air Cleaner
Weiand 7622 Track Warrior Intake
Weiand 9243 Team G Mechanical Water Pump
Billet Specialties FM2211PC Serpentine Conversion Pulley Kit
Singer Custom 300A HO Alternator
Denso Chevy Starter

Exhaust System:
Doug's Custom Headers
Fabricated PYPES Stainless Steel Exhaust
Black Widow Pro Series Venom 300 Mufflers

Transmission:
TCI-371000P1 Street Fighter 700R4 w/Transcooler
JHP-406695073119 High Performance Flywheel

Rear End:
Rebuilt Original 12 Bolt
12 Bolt Detroit True-Trac 30 spline
12 Bolt 3.73 Ring & Pinion
12 Bolt Master Install Kit w/Bearings
5707 Axle Bearing and Seal Kit
12 Bolt TA Aluminum Support Cover
Moser Performance Rear Axles

Fuel System:
Custom Fabricated Hard Fuel Lines
Tanks Inc. TM34B-T-KIT

Brake System:
Classic Performance 6474HBK-SB Street Beast Hydraulic Brake Assist Kit
Wilwood Disc Brakes 140-10996-D Forged Dynalite Pro Series Front
Wilwood Disc Brakes 140-11398-D Forged DynaPro Rear Low-Profile

Radiator:
Be Cool 17008 Radiator
2 12" Spal Fans 30102029

Ignition Syetem:
PC 1500 Odyssey Battery
MSD Pro-Billet Distributor 85551
MSD Digital 6AL Ignition Controller
MSD Blaster 2 Ignition Coil
MSD Noise Filter 8830

Suspension:
Delphi-Remi 60014P 14:1 Power Steering Gearbox
Global West Suspension CTA-42A Tubular Upper Control Arms
Global West Suspension CTA-42H Tubular Lower Control Arms
Global West Suspension GWSV-104 Front Coil-Overs
Global West Suspension COR-672V Rear Coil-Overs
Global West Suspension SS-6472GSKB Suspension Steering Knuckle Arms
Global West Suspension TS-82 Rear Frame Supports
Global West Suspension SB-884 Sway Bar
Global West Suspension SP-47 Del-a-lum Control Arm Bushings
Global West Suspension TBC-82 Tubular Rear Control Arms
Global West Suspension Aluminum Racing Rear Lower Control Arms
Global West Suspension ADJ-5 Tubular Tie Rod Adjusting Sleeves

Headlights:
Dapper Lighting 575 (2)Black & (2)Chrome Halo HDR/Switchback

Misc:
2 Recaro (Left and Right Front) Orthoped seats in all black leather w/grey logo w/Recaro Slider Track Kit and
Mounting brackets
LED Domelight
Legendary Auto Interiors Custom Floormats

Audio & Convenience:
Custom A-Pillars
Custom Center Console
Custom Kick Panels
Custom Rear Deck Lid
Custom Trunk
Sony RSXGS9 HiRes Stereo
Morel Elate Titanium 603A 3-way Component Speaker Set- Active Configuration (6 speakers)
Morel Elate Titanium MW6 Woofer Pair 6.5" (2 speakers)
JL W6 10W6V3-D4 10" DUAL 4 OHM Subwoofer 600W RMS (2 Subwoofers)
Audison SR1DK Mono Block 1200w@1ohm 940@2ohm 600@4ohm
(2) Audison AVQUATTRO VOCE 4 Channel Amplifiers
(2) Audison AVDUE VOCE 2 Channel Amplifiers
Audison bit One HD 13 Channel High Resolution Digital Audio Processor w/DRCMP
Audioquest Premium RCA & Optical Wiring (Full Analog and Full Digital Wiring for System Comparison)
Soundskins Vehicle Deadining System throughout entire car
Security System IDATALINK with Shock Sensor, Siren, LED, Hood Pin and Trunk Pin Alarm
Power Lock/Unlock for Front Doors
Back Up Camera Rydeen Ulta Low Illumination HD CMOS III Camera w/Parking Line
Rydeen 4.3" Mirror with Auto Dimming (Back Up Camera screen in the Rear View Mirror)
Custom Billet Switches in Center Console control High Beams, Speakers Illumintion, Locks
